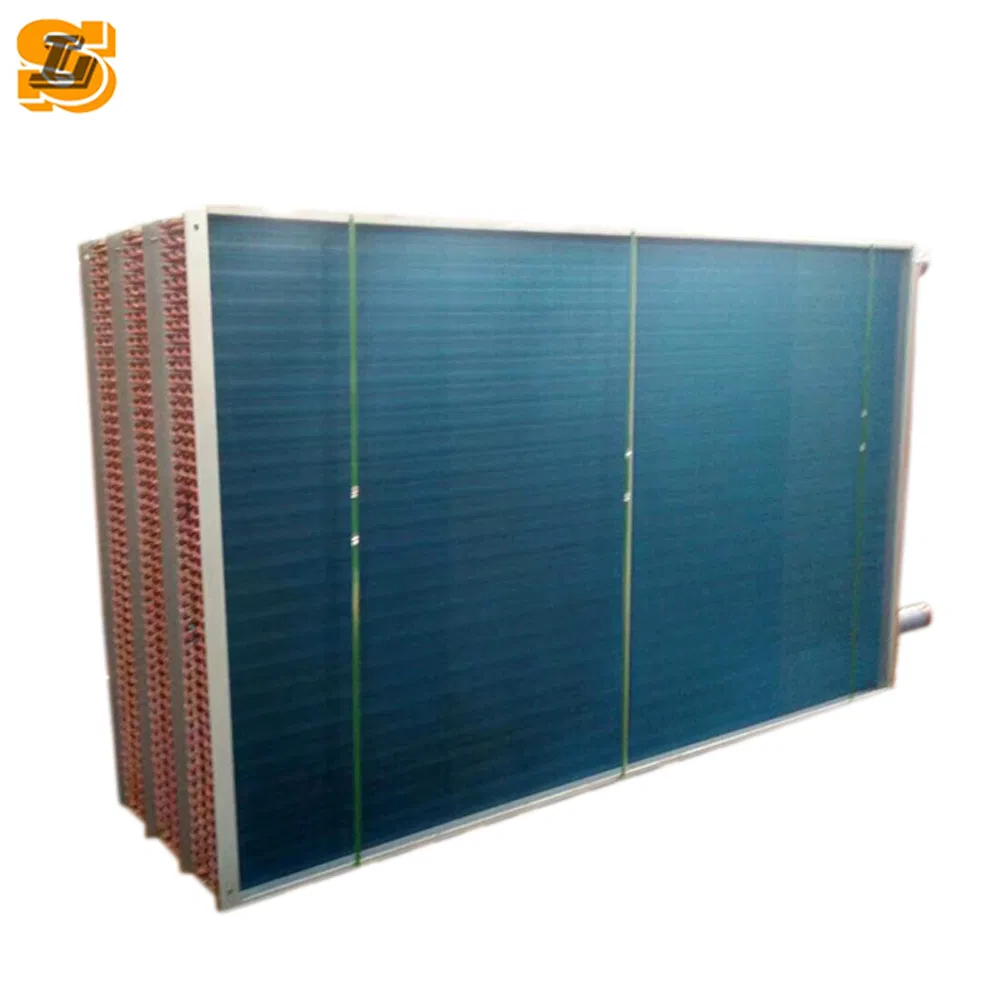

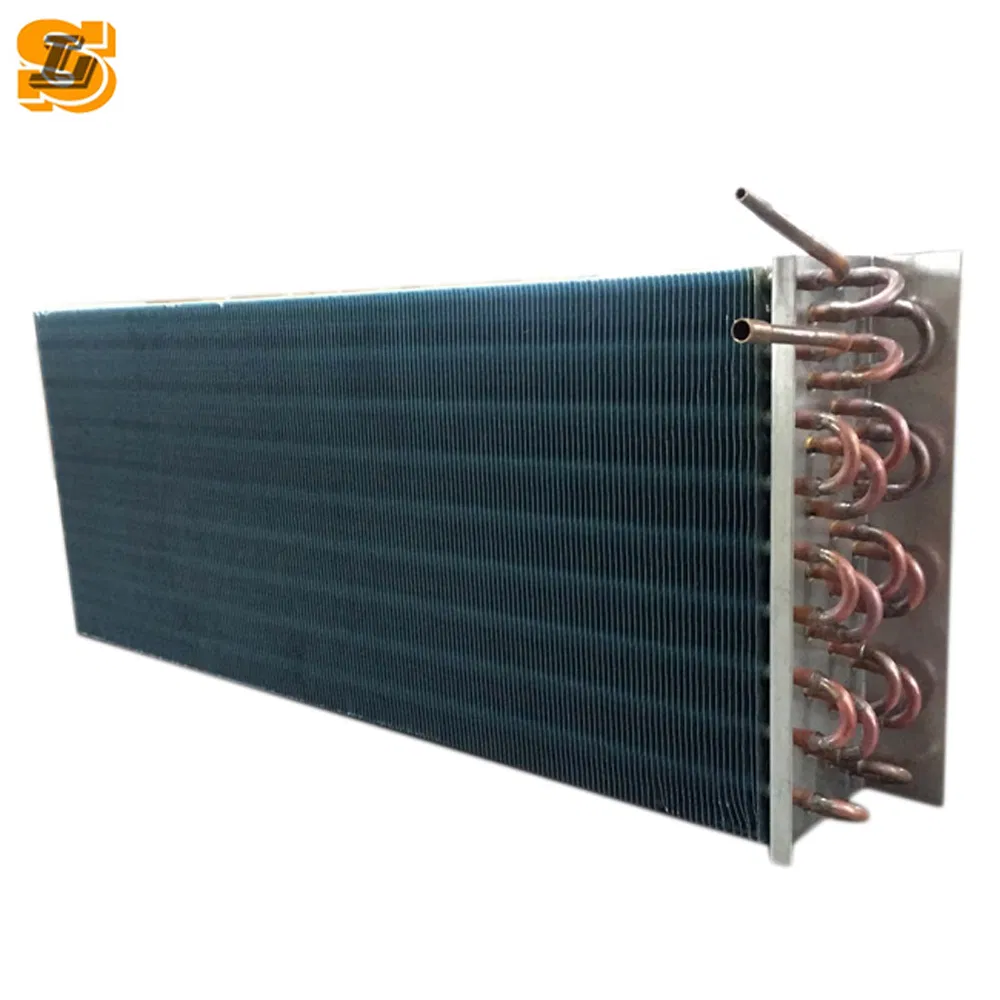

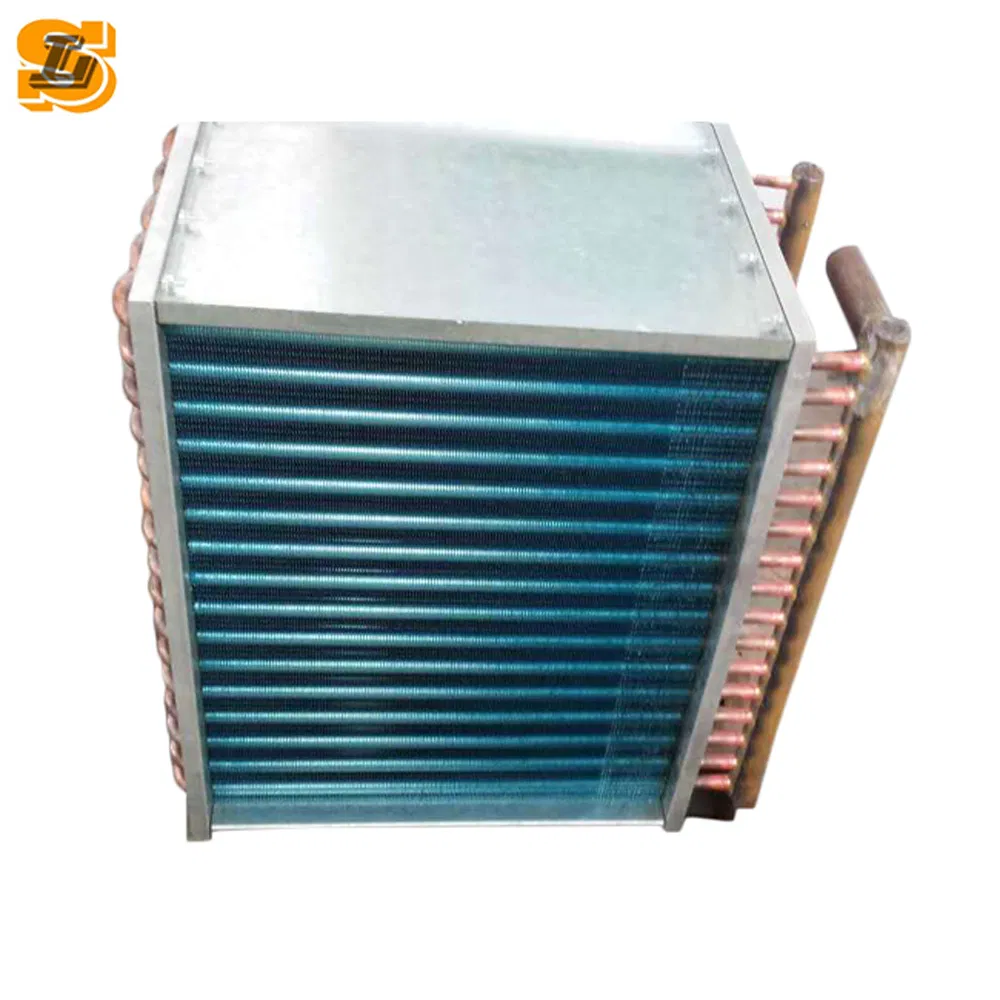

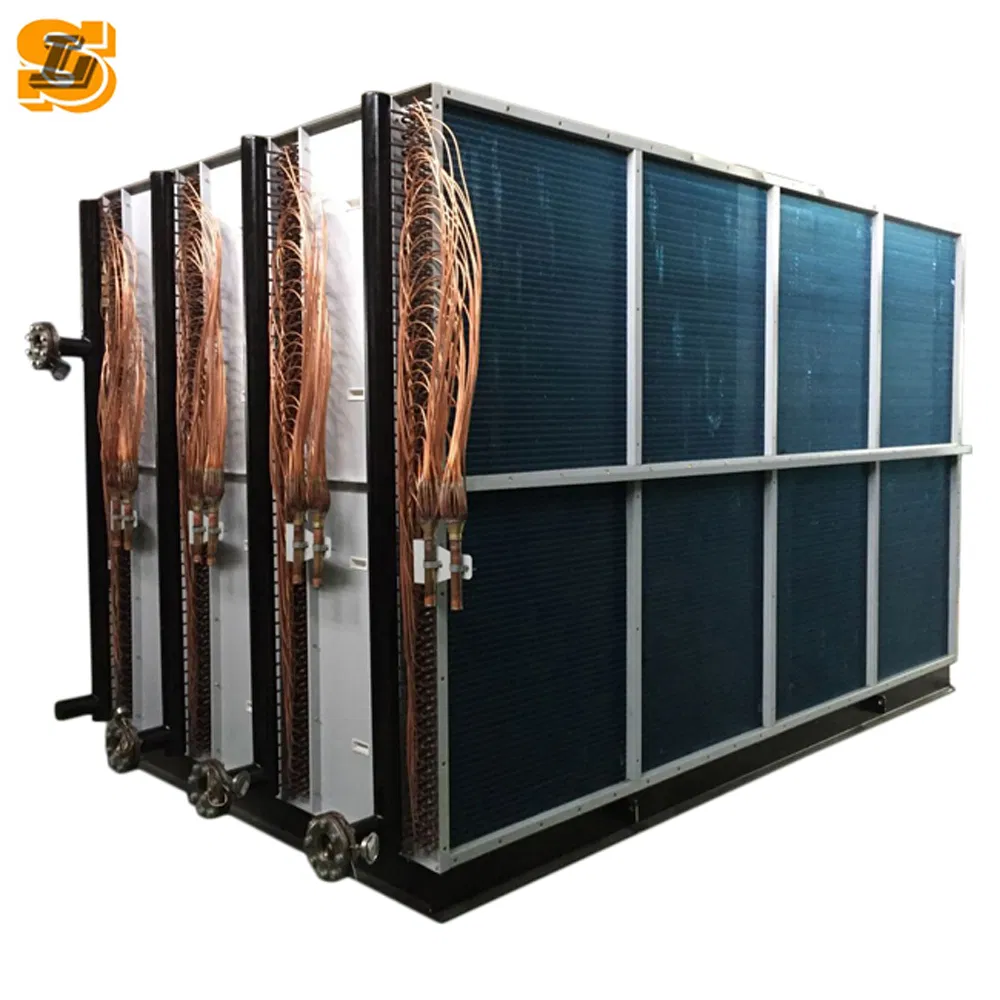

Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
1 / 5
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices
Aluminum Tube and Fin Evaporative Cooling Coil Prices

Aluminum Tube and Fin Evaporative Cooling Coil Prices

Customization: Available
Certification: ISO9001
Application: Heater, Cooler, Condenser, Evaporator
Send Inquiry

Product Description

Technical Specifications

Model NO.
4R-20T-1000
Principle
Mixing Heat Exchanger
Tube Material
Copper, Aluminium, Steel, Stainless Steel
Fin Material
Copper, Aluminium, Steel, Stainless Steel
Structure Material
Metal Material
Type
Stainless Steel Heating Equipment
Heat Transfer Surface
Tubular Heat Exchanger
Core
Copper Tube
HS Code
8415909000
Production Capacity
10000 Unit/Units / Month

Product Overview

Heat Exchanger Specifications:

  • Tube O.D.: 7.94 / 9.52 / 15.88mm.
  • Materials: Copper tube, hydrophilic aluminum fin.
  • Welding: Specialized welding processes tailored to material and application requirements.
  • Customization: Size and shape can be manufactured according to specific requirements.

Core Features:

  • Available Fin Types: Louver fin, flat fin, or corrugated fin.
  • Copper Pipe Options: Diameter 7mm, 8mm, or 9.52mm; grooved or smooth tube variants.
  • Adjustable Pitch: Fin pitch can be adjusted between 1.8mm and 5.8mm.
  • Hole & Row Pitch: 25*21.65mm and 12.7*19.05mm.
  • Refrigerant Compatibility: Suitable for R134A, R22, R404A, R407C, and others.
  • Versatile Voltage: Support for 220V/1/50HZ, 380V/3/50HZ, and other custom types.

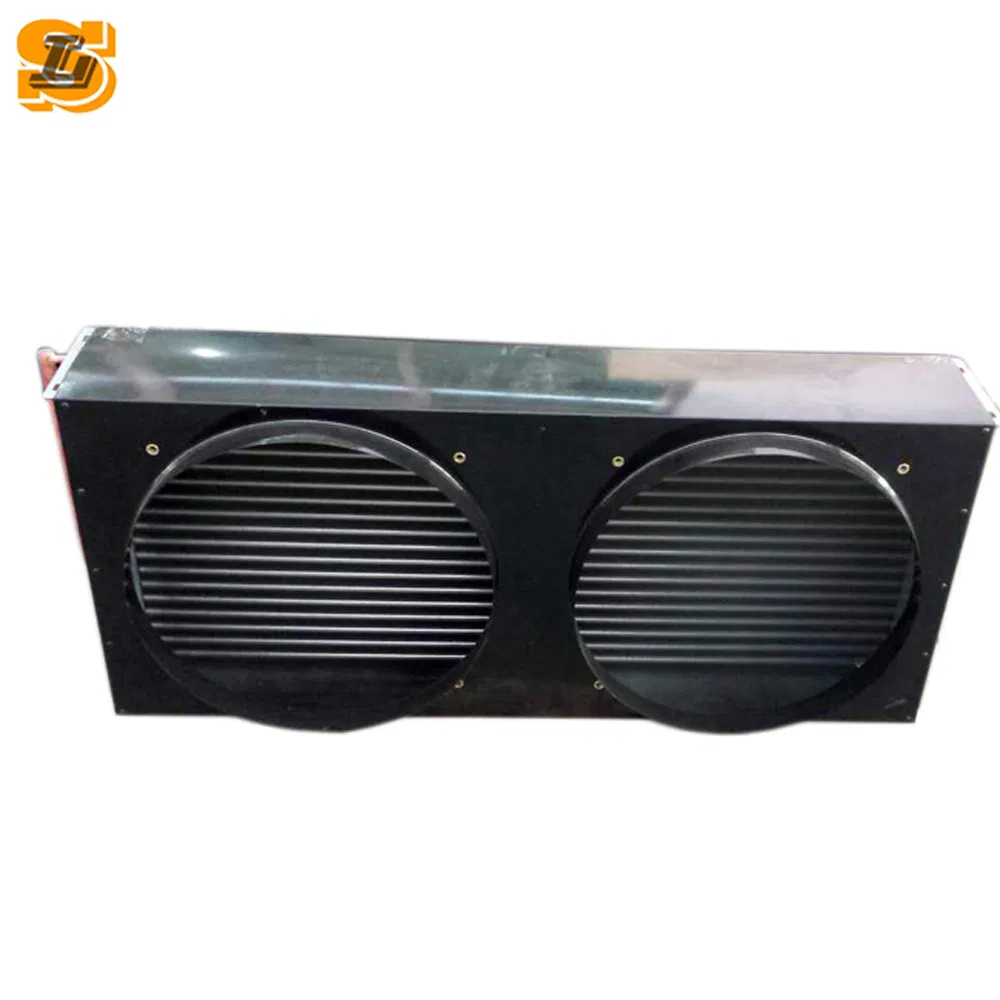

  • Cooling Options: Alternative condensing fans available (Shaded pole or outer rotor motors).
  • Safety Testing: Rigorous gas examination under 3.0Mpa air pressure to ensure 100% tightness.
  • Applications: Widely utilized in the refrigeration industry, cold rooms, and advanced cooling systems.

Product Visuals

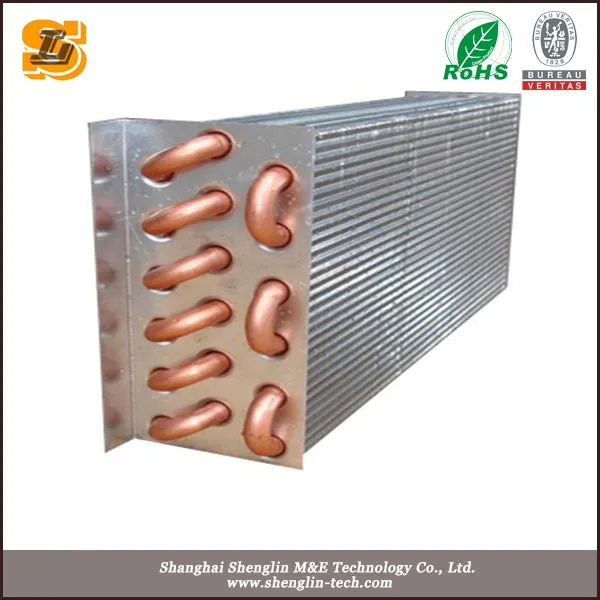

Evaporative Cooling Coil

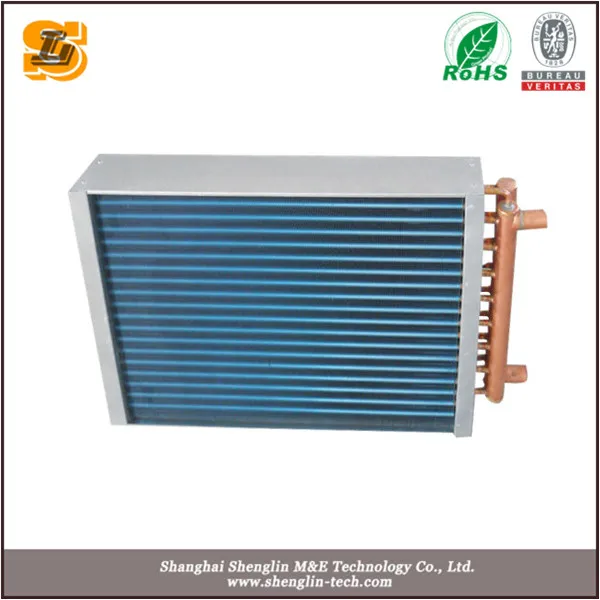

Aluminum Tube and Fin Evaporator

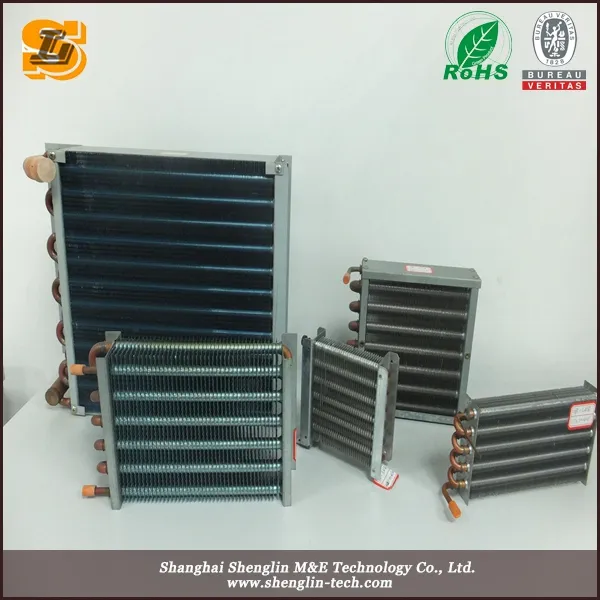

Heat Exchanger Unit

Fin Pattern Data

Fin Pattern Copper Tube O.D. (mm) Row Space (mm) Hole Space (mm) Fin Thickness (mm) Fin Space (mm)
Flat fin Sine wave/blade Smooth sine Window Sesamoid
A712.7210.105//1.31.3/
D7.9415.8825.40.1051.8~3.01.8~3.01.8~3.01.8~3.0/
E9.522225.40.105~0.151.6~3.21.6~3.21.6~3.21.6~3.2/
I12.7527.531.750.115~0.151.5~3.51.5~3.51.5~3.51.5~3.51.6~3.2
J15.883338.10.115~0.151.5~4.01.5~4.01.5~4.0//

Model Performance Parameters

MODEL SIZE (MM) HEATING AREA (M2) HP PATTERN IN/OUT (MM) CAPACITY (KW) FIN PITCH (MM) VOLTAGE (V)
CD-2320*100*23521/42*43/80.62.35220
CD-4.4370*100*2854.41/23*53/81.32.4220
CD-7440*135*330714*61222.9220
CD-15550*180*4801524*916/124.42.55220/380
CD-33900*200*4803345*919/1611.22.45380
CD-801250*200*93080124*1825/2224.42.3380

Frequently Asked Questions

What materials are used in your heat exchangers?
We use high-quality copper tubes, aluminium fins, and options for steel or stainless steel plates depending on the specific application requirements.
What types of fins can be customized?
We offer various fin designs including Louver fins, Flat fins, and Corrugated fins to optimize heat transfer efficiency.
How do you ensure the product is leak-free?
Every unit undergoes a rigorous gas examination under 3.0Mpa air pressure to ensure perfect tightness and durability.
Which refrigerants are compatible with these units?
Our heat exchangers are designed to work seamlessly with R134A, R22, R404A, and R407C refrigerants.
Can the size be customized for specific projects?
Yes, we can manufacture heat exchanger outline sizes and shapes according to customized samples or technical drawings provided by clients.
What is the production capacity for these evaporators?
We have a robust production capacity of approximately 10,000 units per month to support large-scale industrial needs.
