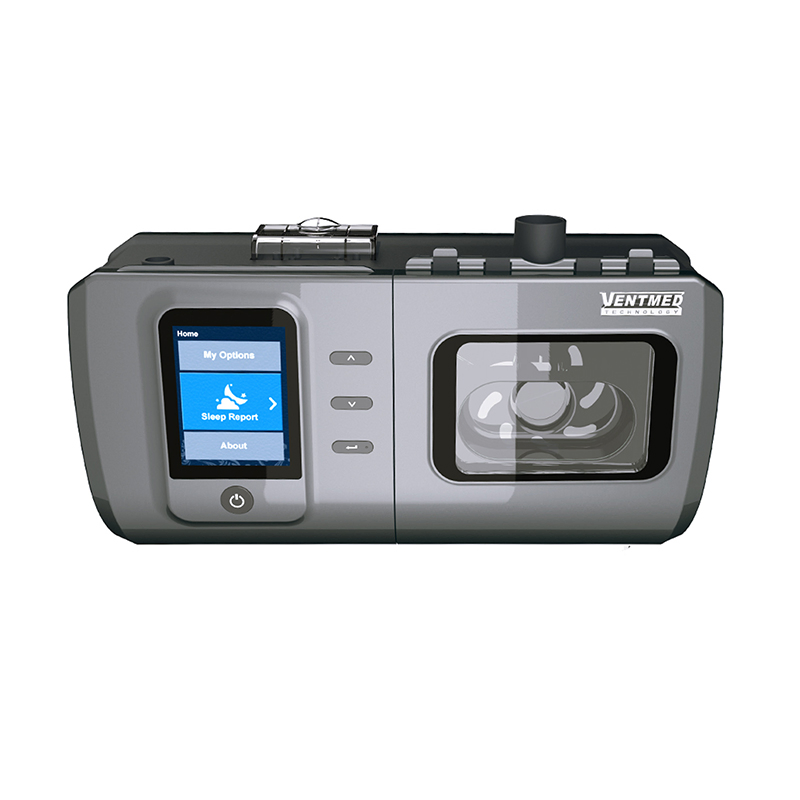

| Model NO. | DS-8 |
| Work Mode | CPAP, Auto, S, T, ST |
| Pressure Range | 4-30CMH2O (Auto Adjust) |
| Screen | 2.8inch Color TFT, 320*240 |
| Power Supply | Input 100-240V, 50-60Hz; Output +24V, 2.5V |
| Data Storage | SD Card |
| Weight | 1.6kg (Net Weight); 3.9kg (Gross Weight) |
| Work for | Anti-Snoring, CSA and OSA Patients |
| Application | Hospital or Home |
| Warranty | 2 Years |
S Mode T Mode S/T Mode Automatic Breathing Apparatus To Treat MSA

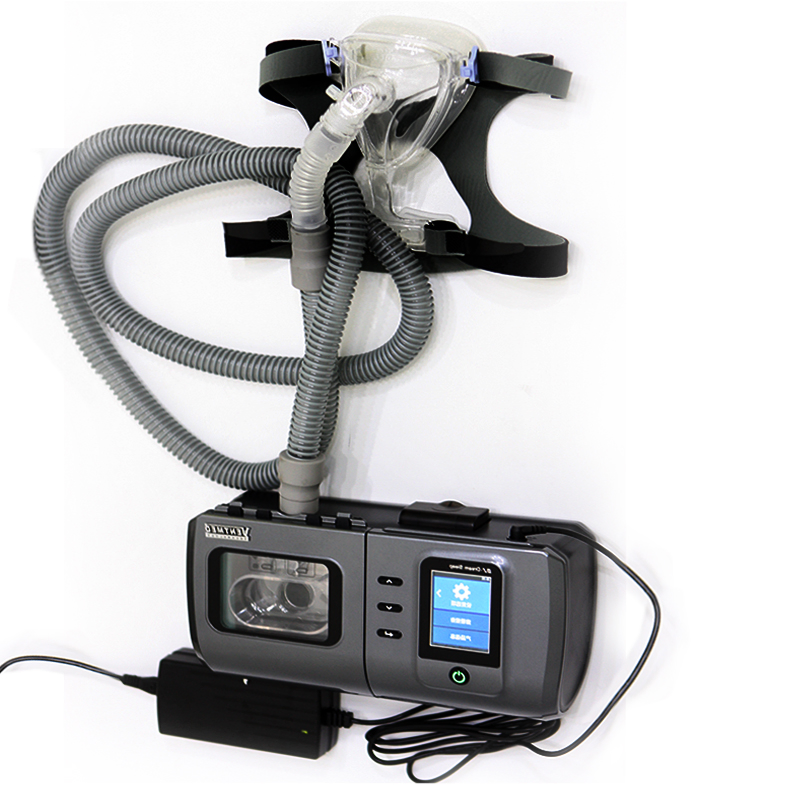

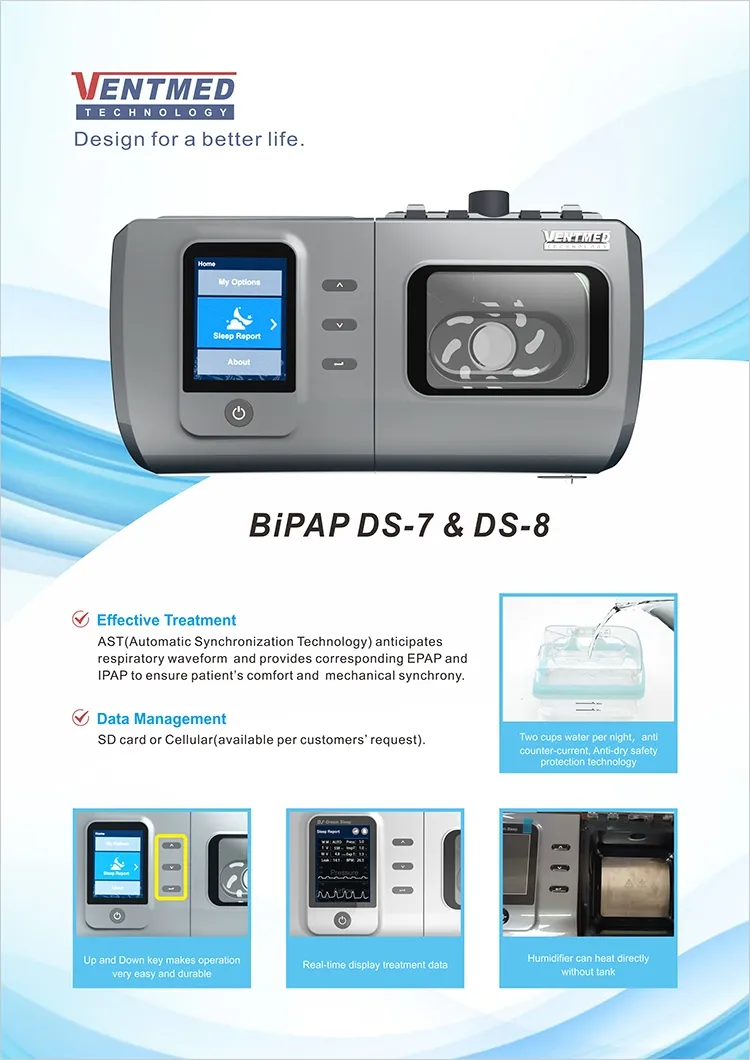

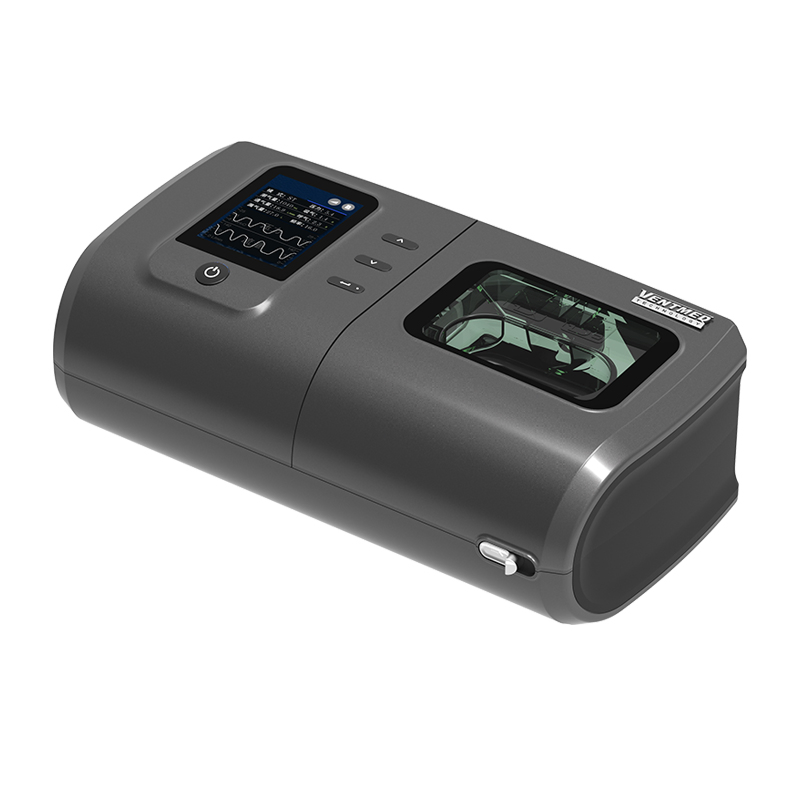

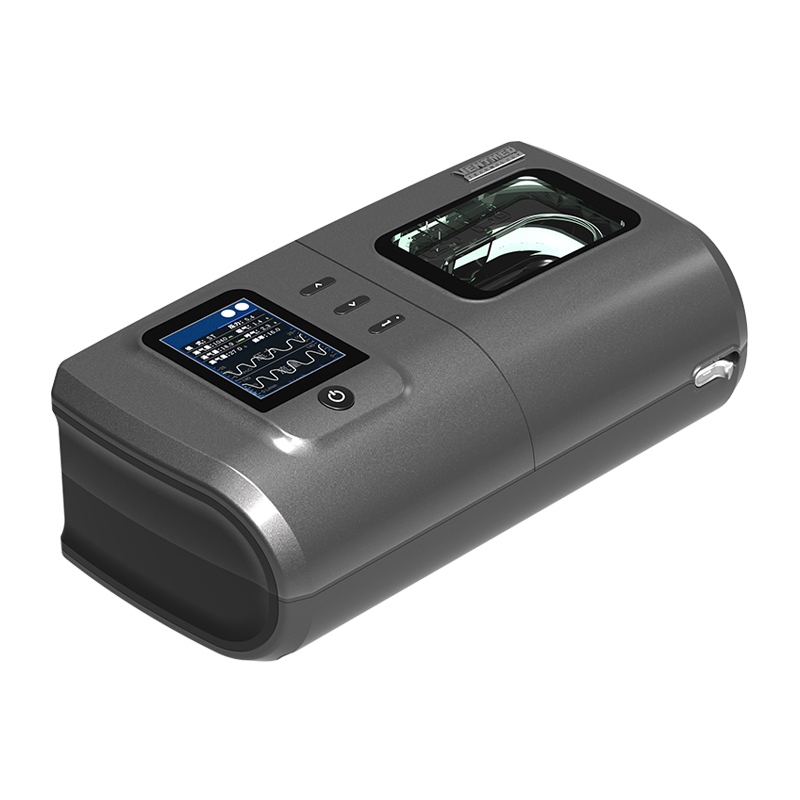

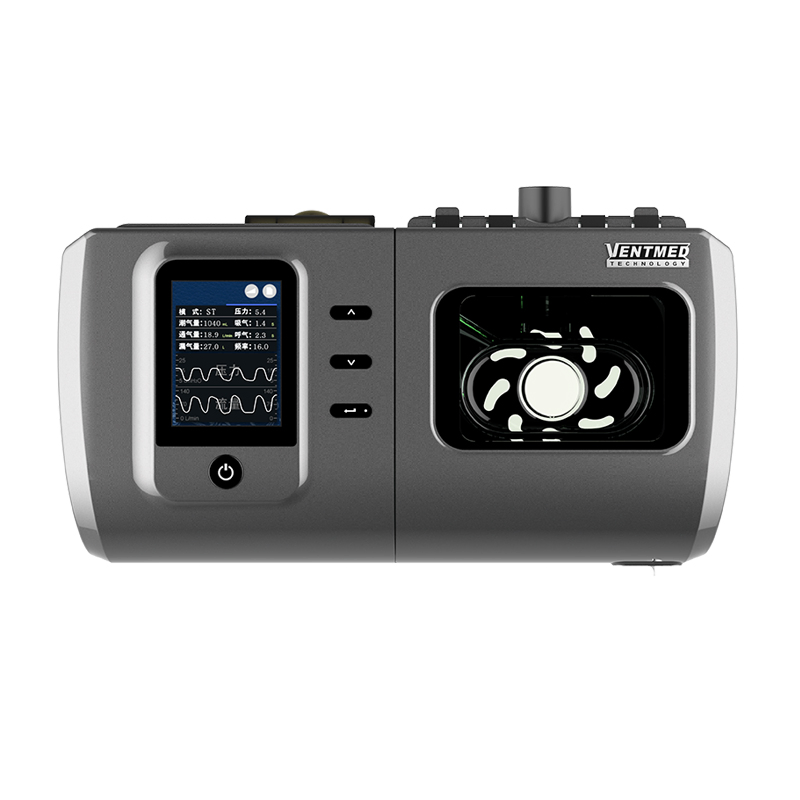

The Bi-level Positive Airway Pressure (BiPAP) with EPR (Expiratory Pressure Relief) offers the ultimate in sleep therapy comfort. It combines auto-adjusting pressure delivery with breath-by-breath pressure relief for most natural sleep therapy. It provides non-invasive ventilation for patients with respiratory insufficiency in the hospital or home.
The key feature of BiPAP is that pressurized air is delivered at two alternating levels: Inspiratory Positive Airway Pressure (IPAP) and Expiratory Positive Airway Pressure (EPAP).

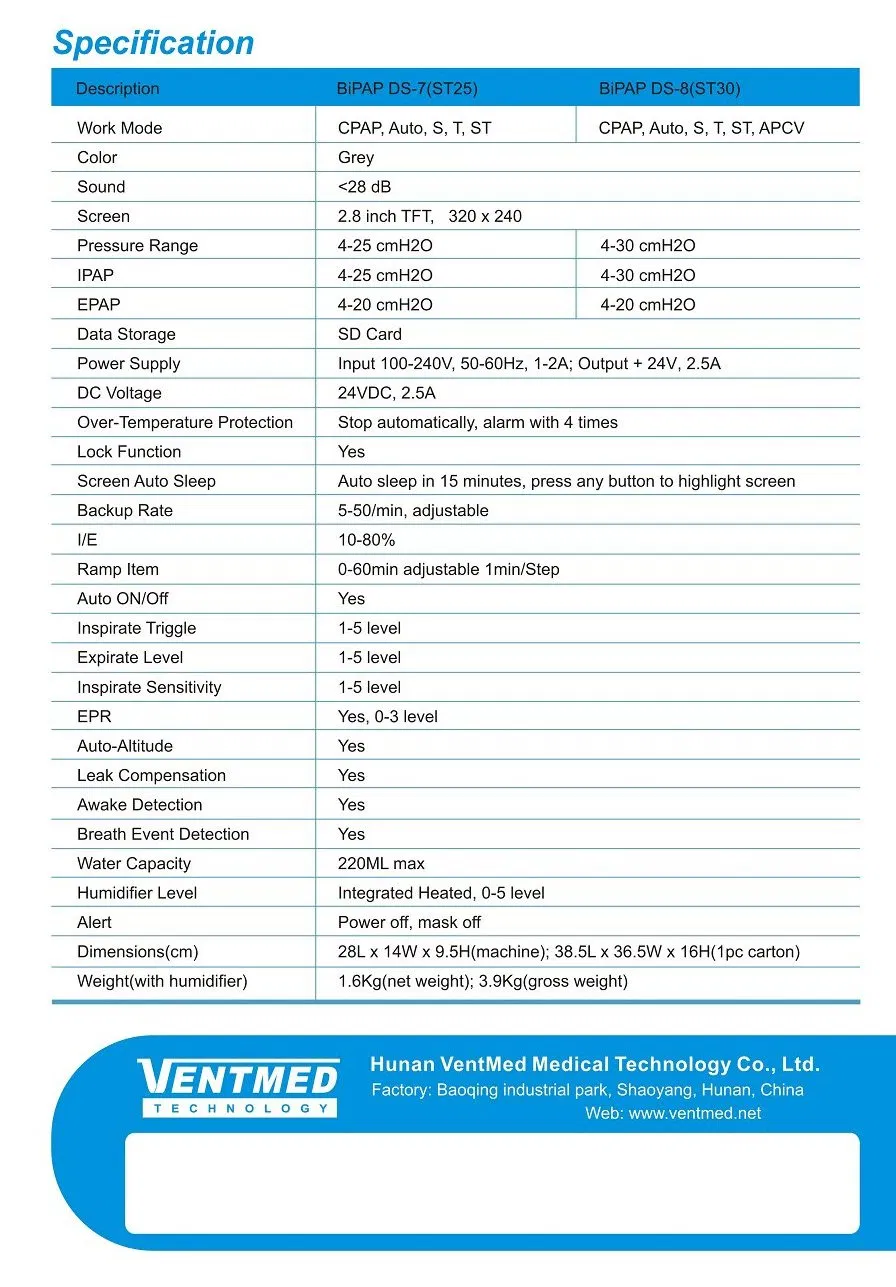

| Working Mode | CPAP, Auto, S, T, ST, APCV |
| IPAP / EPAP | 4-30 cmH2O / 4-20 cmH2O |
| Backup Rate | 5-50/min, adjustable |
| Ramp Item | 0-60min adjustable |
| Sound | <28db | 220ML max |
| Humidifier Level | 0-5 level |
| Inspirate Trigger | 1-5 level |
| I/E Ratio | 10-80% |
