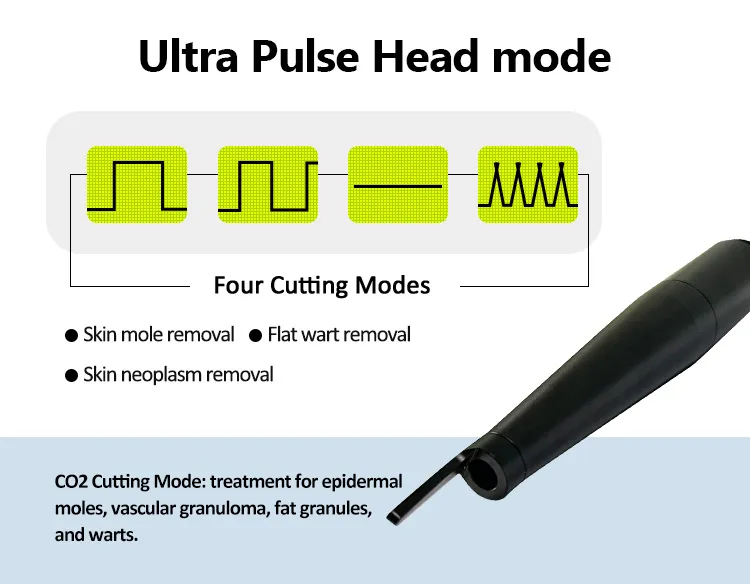

| Working mode | Single pulse, continuous pulse, repeated pulse, ultra pulse |
| Output power | 0-60W (adjustable) |
| Input power | 450VA |
| Laser type | Sealed-off CO2 laser |
| Laser wavelength | 10.6μm |
| Divergence angle | 4mrad |
| Focused spot diameter | ≤0.4mm |
| Pulse width | 0.1ms-10ms |
| Transmission system | Spring-balanced 7 joint arms |

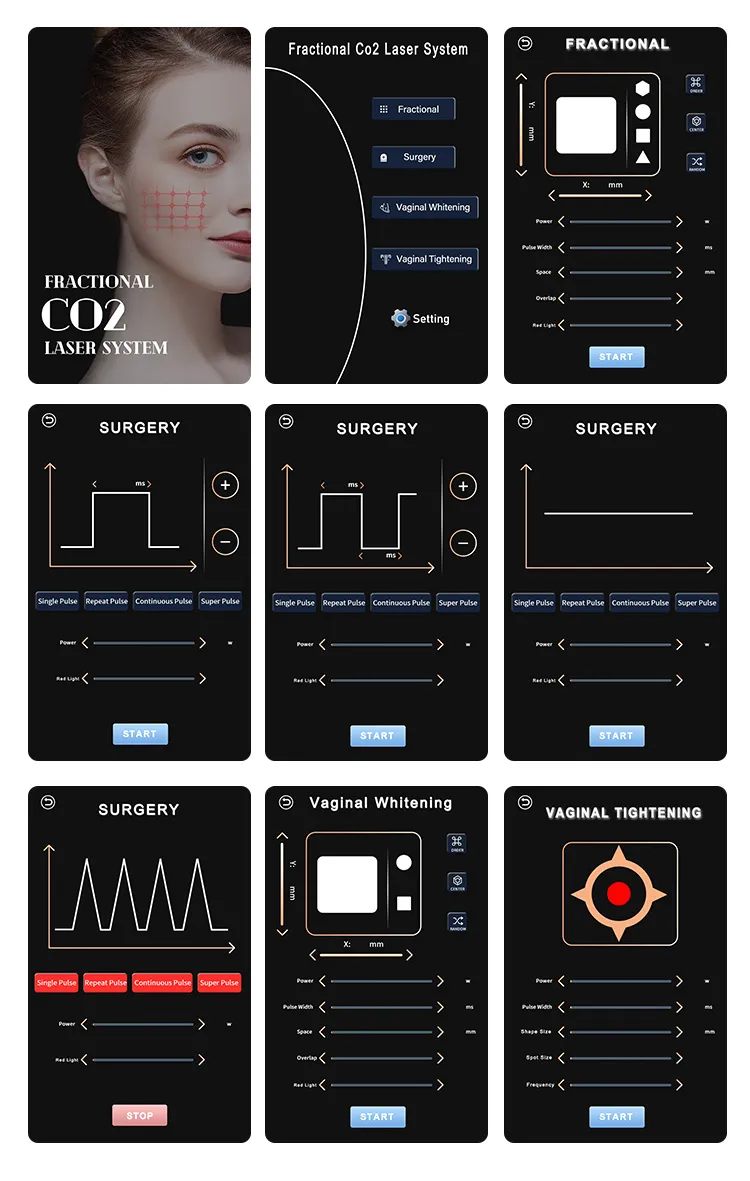

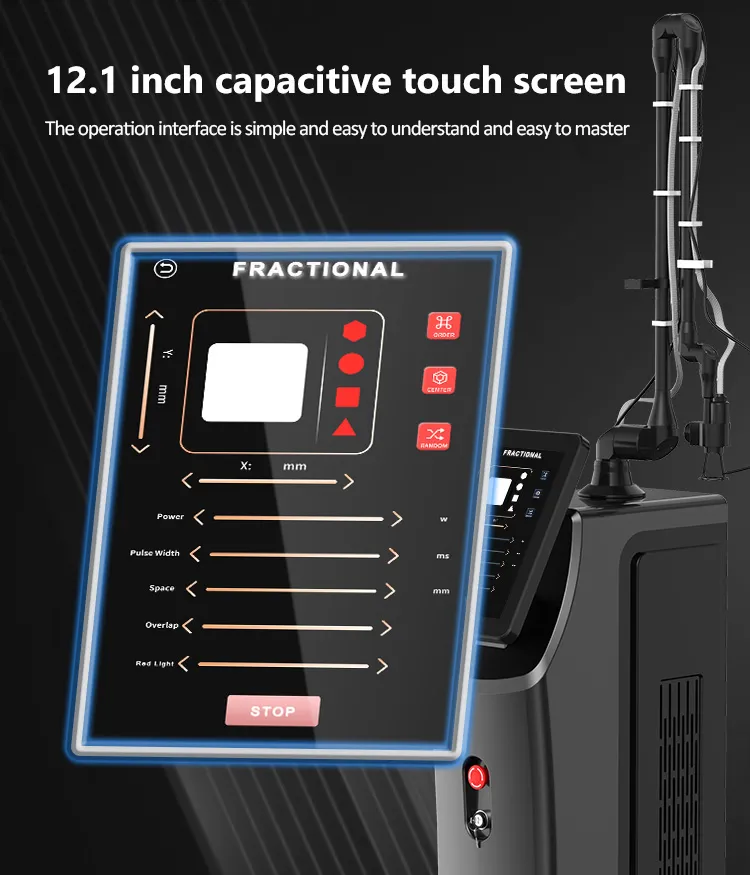

| Display screen | 12.1 color touch screen |
| Air pressure | 86Kpa-106 Kpa |
| Preheating-time | > 5min |

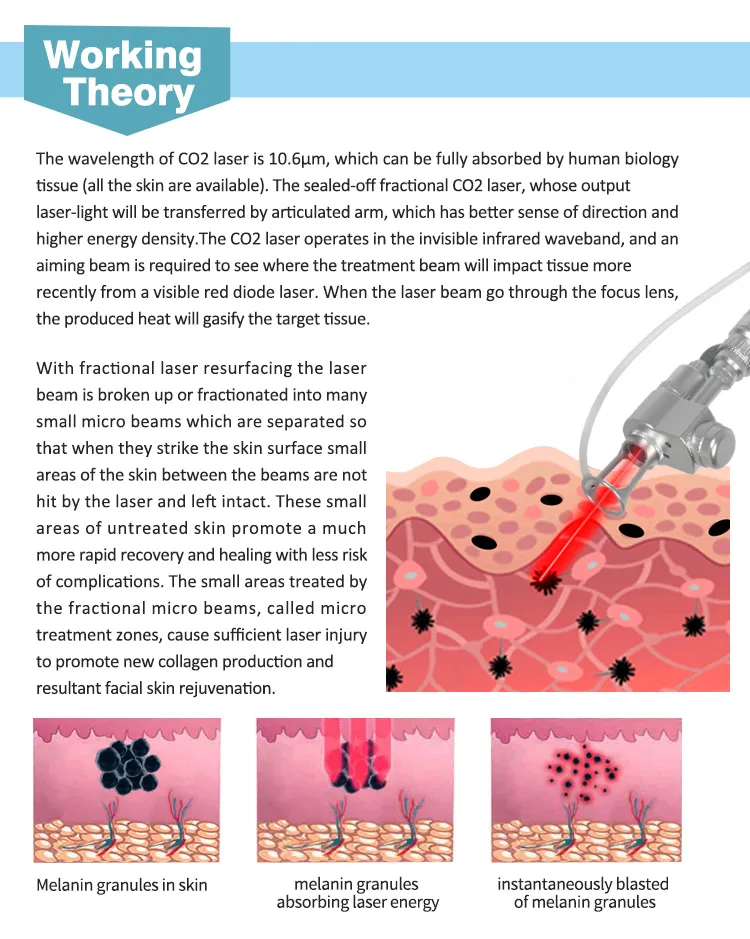

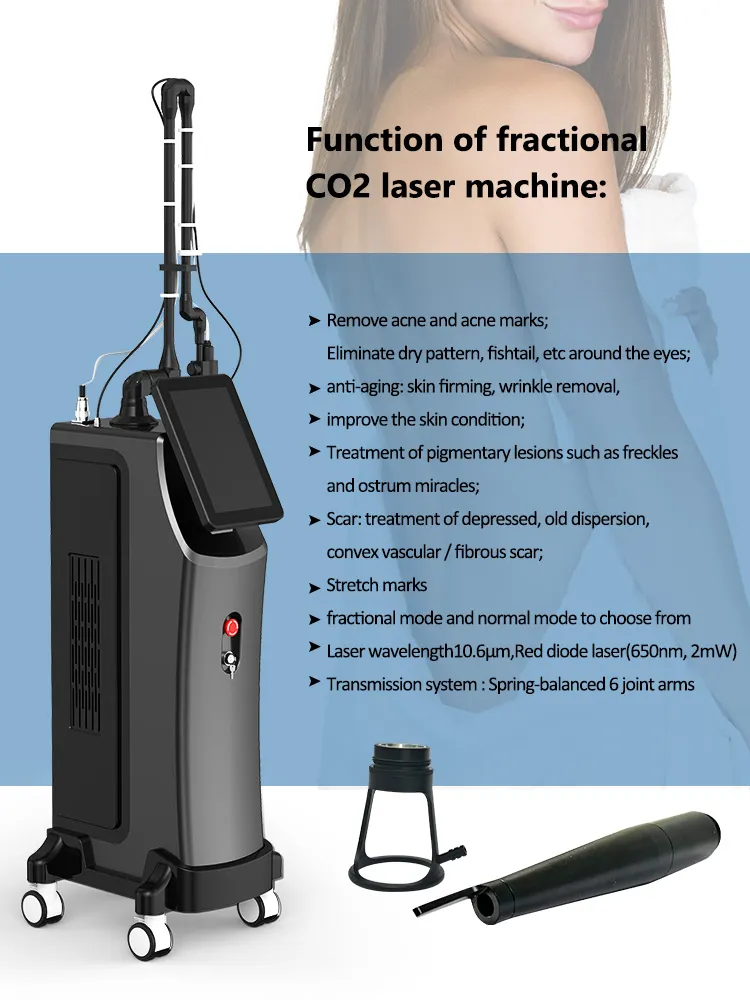

The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue. The sealed-off fractional CO2 laser output is transferred via an articulated arm, ensuring superior directionality and high energy density.
Operating in the invisible infrared waveband, the system uses a visible red diode laser aiming beam. When the laser beam passes through the focus lens, the heat produced gasifies the target tissue.

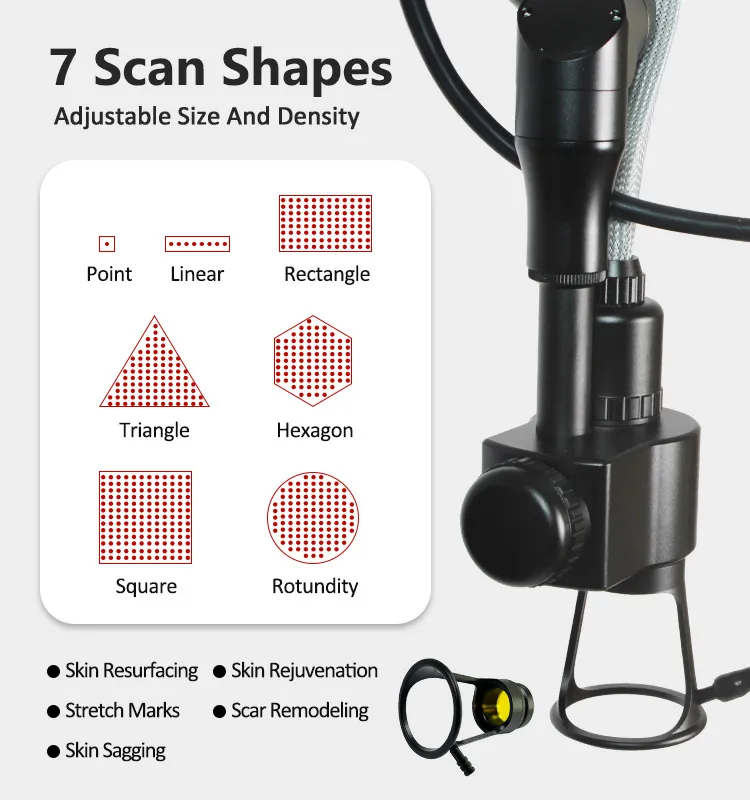

Fractional laser resurfacing breaks the beam into micro-beams. The small areas of untreated skin between these beams promote rapid recovery and healing, stimulating new collagen production for skin rejuvenation.
