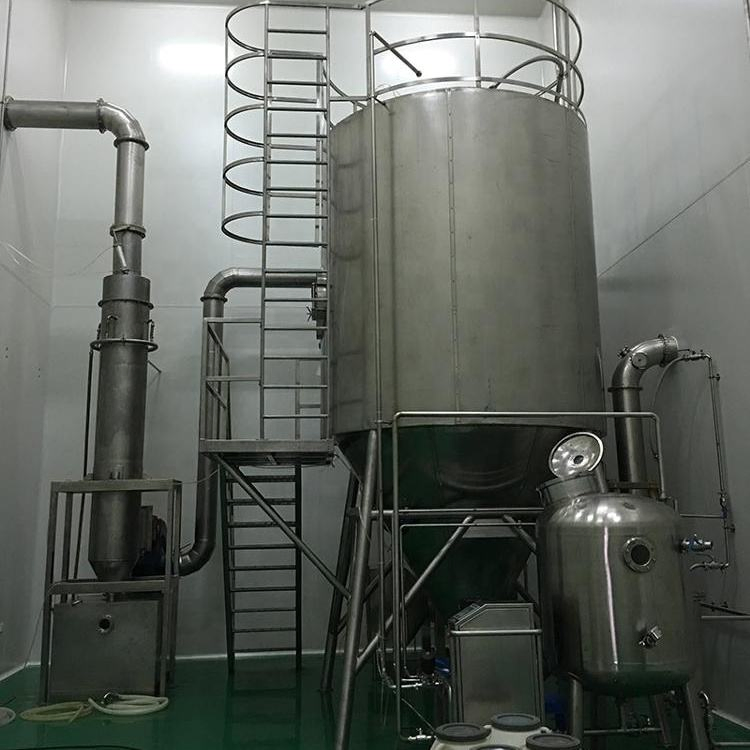

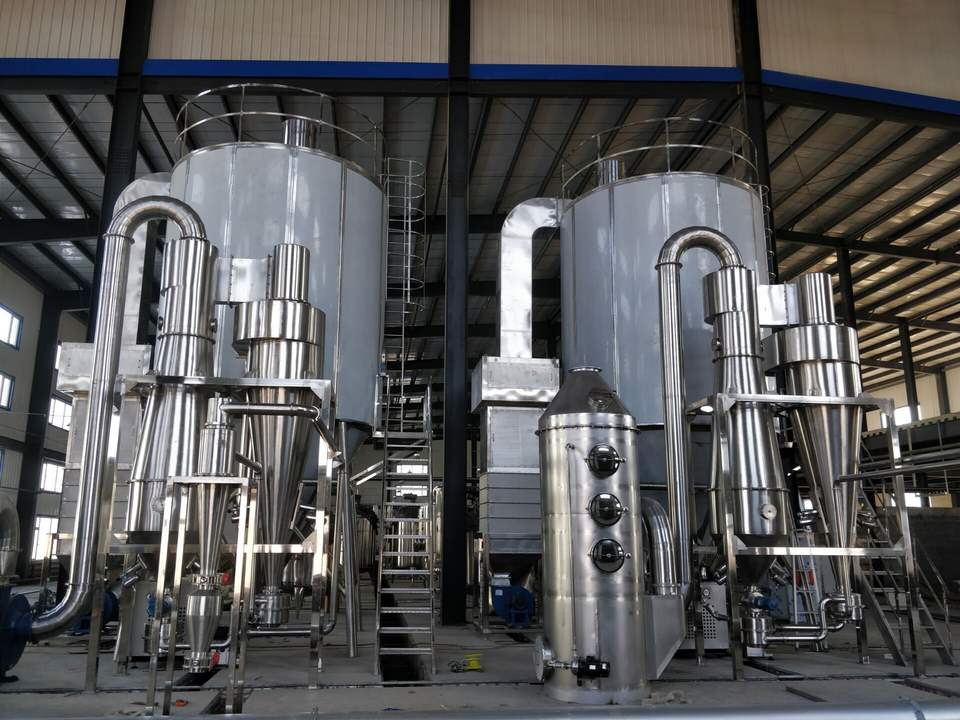

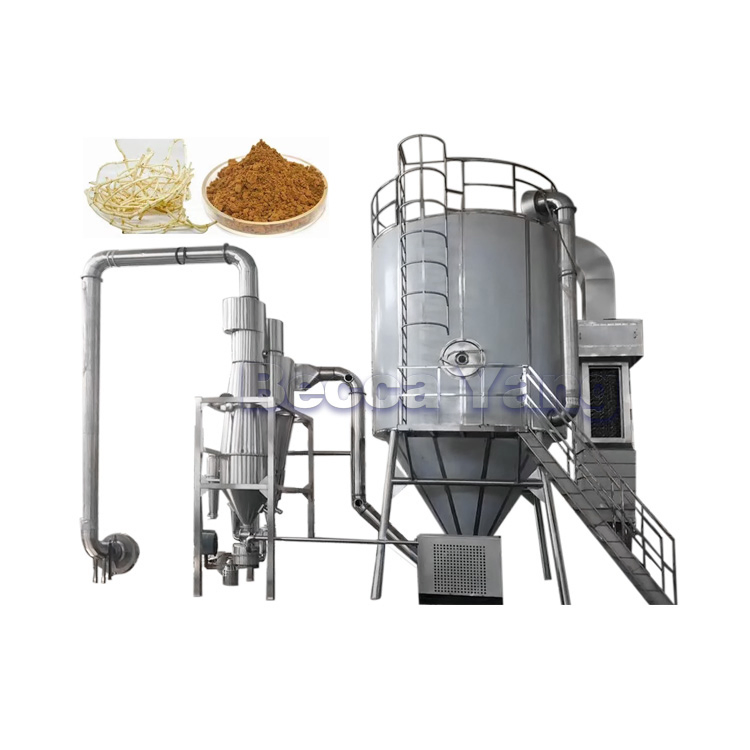

High Speed Atomizer Centrifugal Spray Dryer Machine for Chinese Patent Medicines, Washing Powder, and Oils

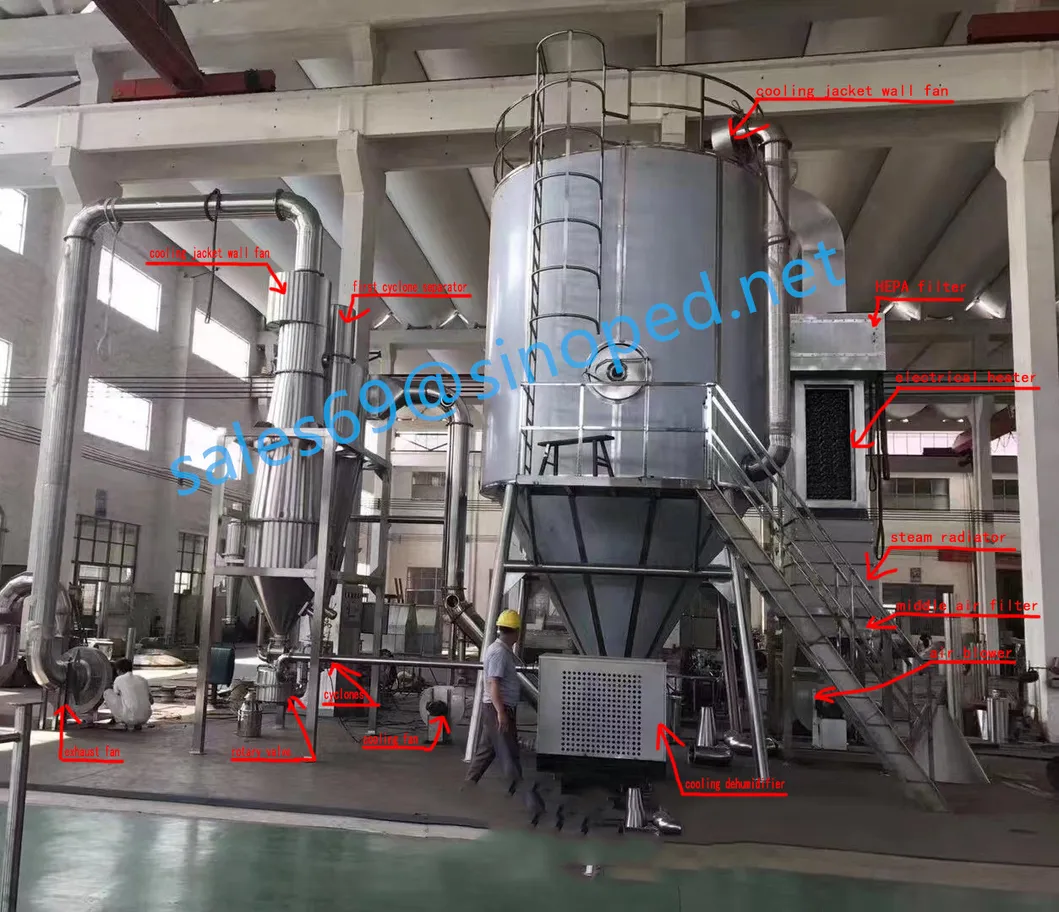

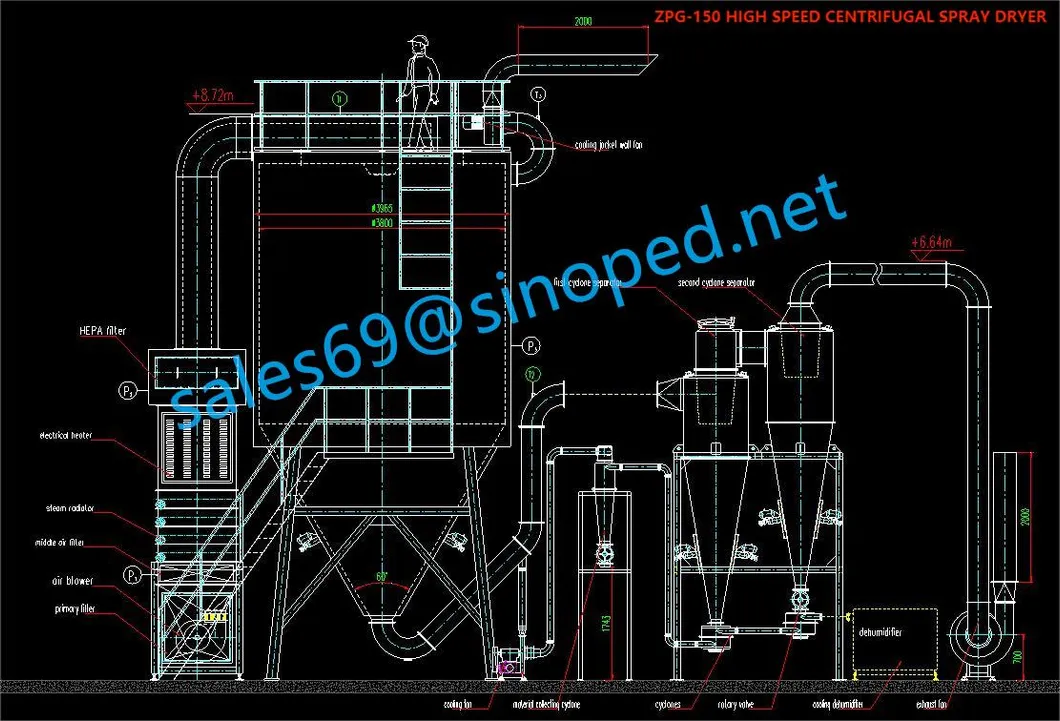

WORKING PRINCIPLE: After filtering and heating, air enters the dryer at the top via a hot air distributor, spiraling evenly into the drying chamber. Liquid material is sent through a high-speed centrifugal atomizer, creating a tiny fog droplet mist. Upon contact with hot air, it dries instantly into a finished product collected via cyclone separator.
KEY FEATURES:
| Model | ZPG-25 | ZPG-50 | ZPG-80 | ZPG-100 | ZPG-150 | ZPG-200 | ZPG-300 |
|---|---|---|---|---|---|---|---|
| Evaporation capacity (kg/h) | 25 | 50 | 80 | 100 | 150 | 200 | 300 |
| Process amount of material (kg/h) | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 |
| Output of finished product (kg/h) | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 24-42 | 36.8-56.4 | 55-85 |
| Electric power (kw) | 63 | 99 | 132 | 153 | 204 | 246 | 330 |
| Temperature of air inlet (ºC) | 160-220 | ||||||
| Temperature of air outlet (ºC) | 80-100 | ||||||

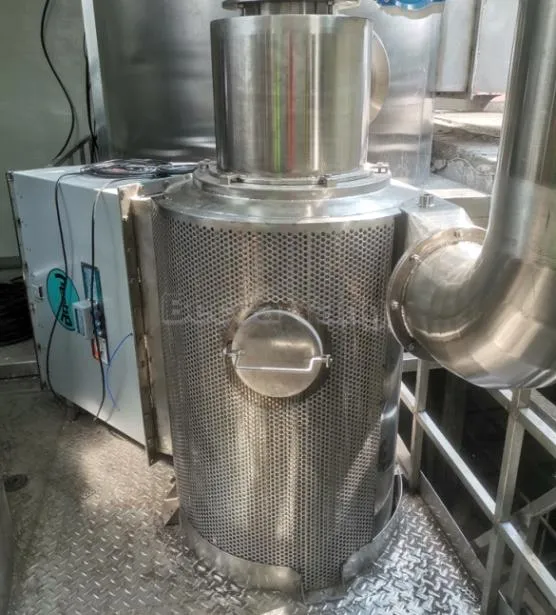

Explosion-proof system: Features automatic explosion relief plates on top of the drying tower for extreme safety.

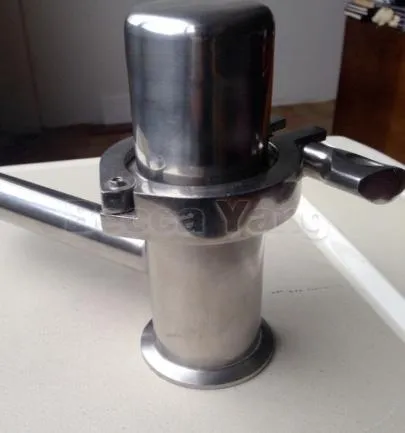

CIP cleaning function: Controlled by programming, ensuring no dead ends during the cleaning process.

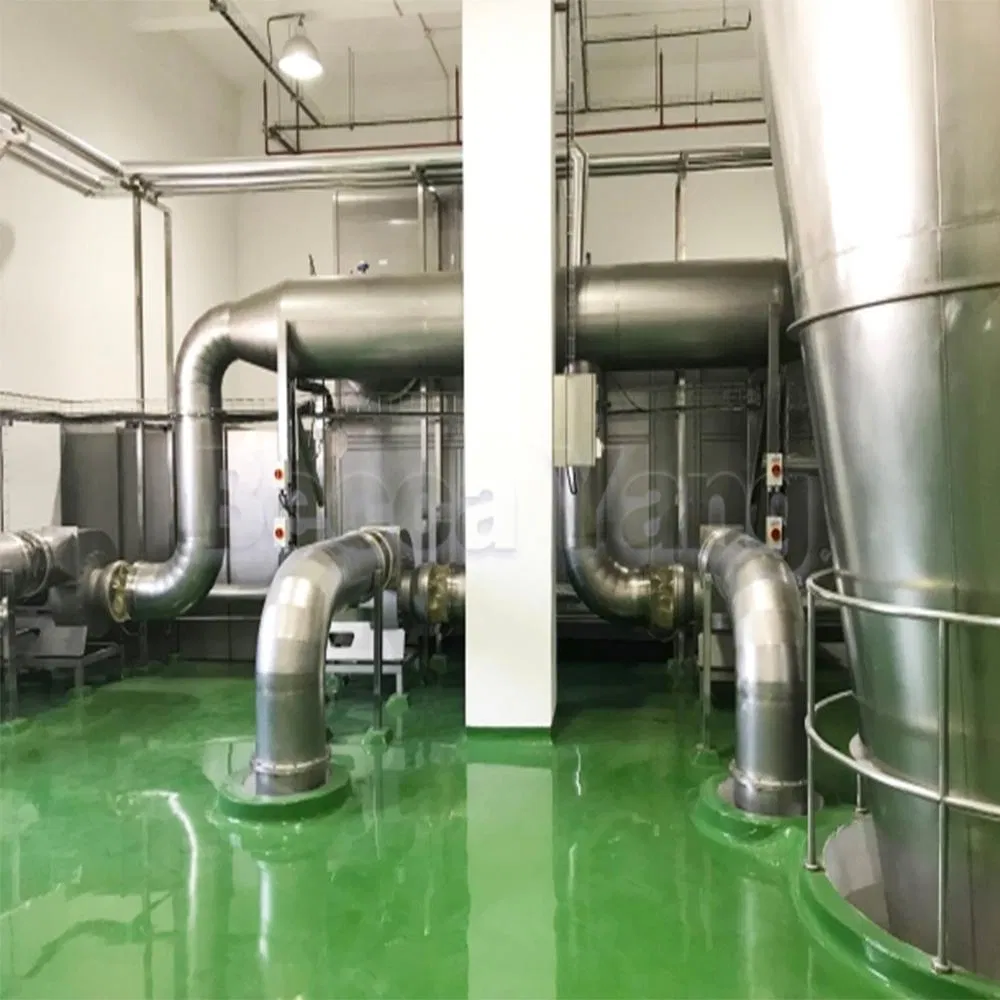

Exhaust heat recovery: Advanced superconducting technology to save energy costs and meet environmental standards.
Milk powder, cocoa powder, instant tea, meat seasonings, soybean, starch, glucose, fruit pulp.
Washing powder, soap powder, baking soda, whitening agents.
Catalysts, vulcanizing agents, humates, etc.
To provide the best price and right model, please include the following in your inquiry:
