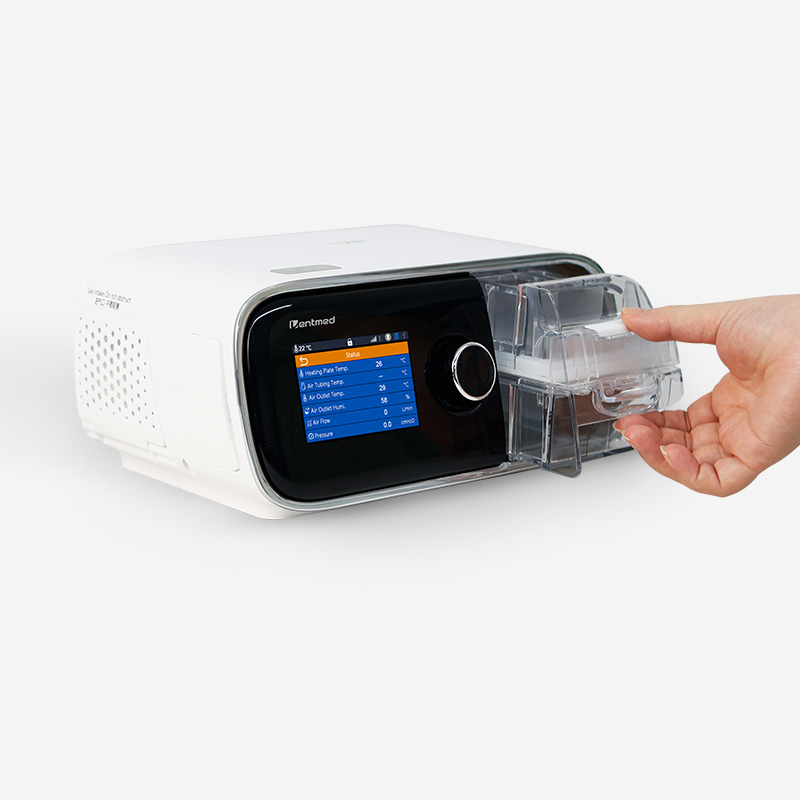

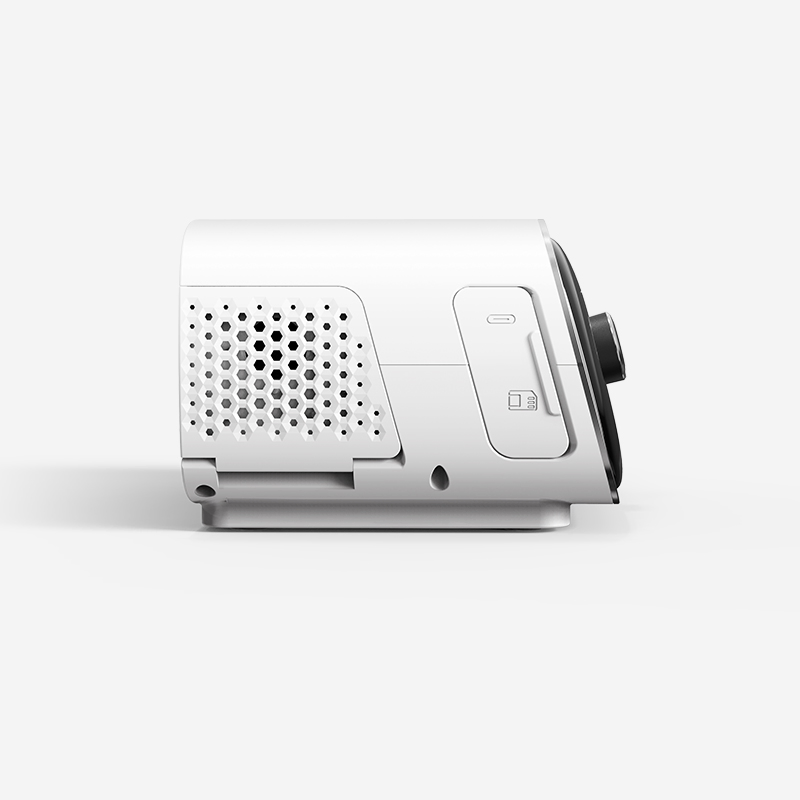

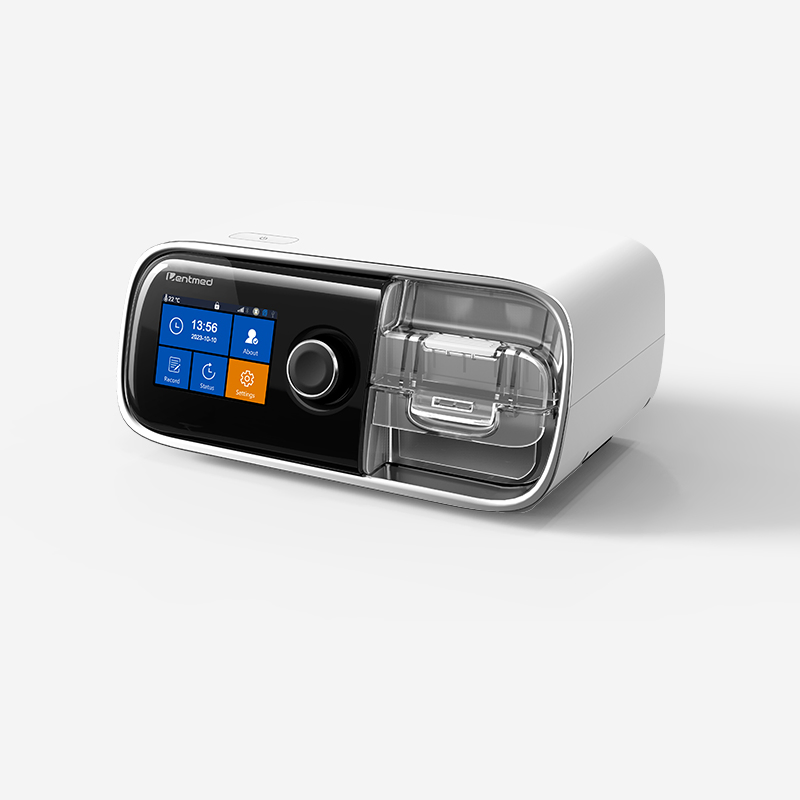

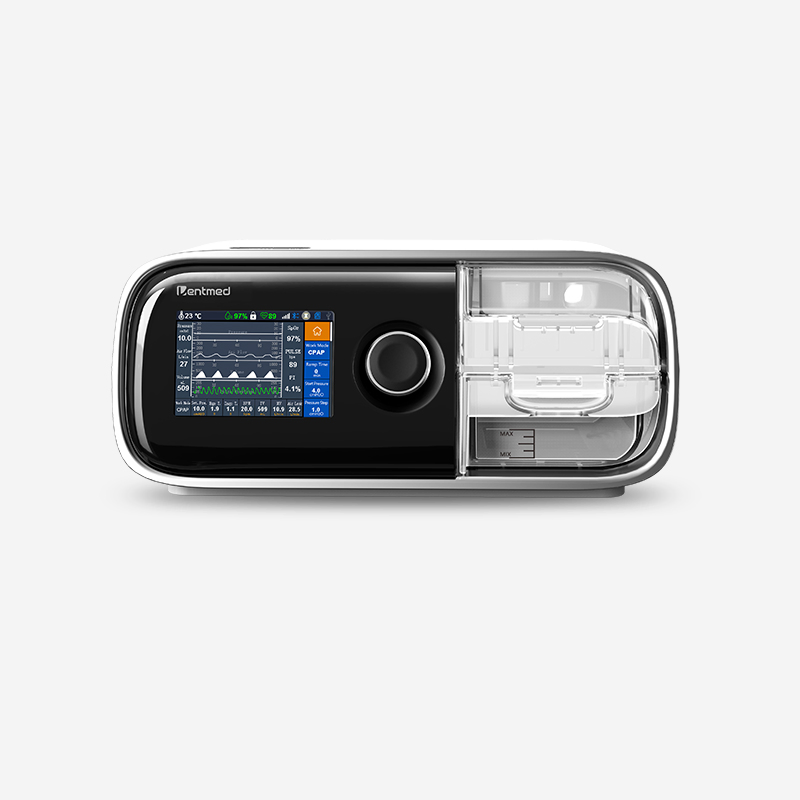

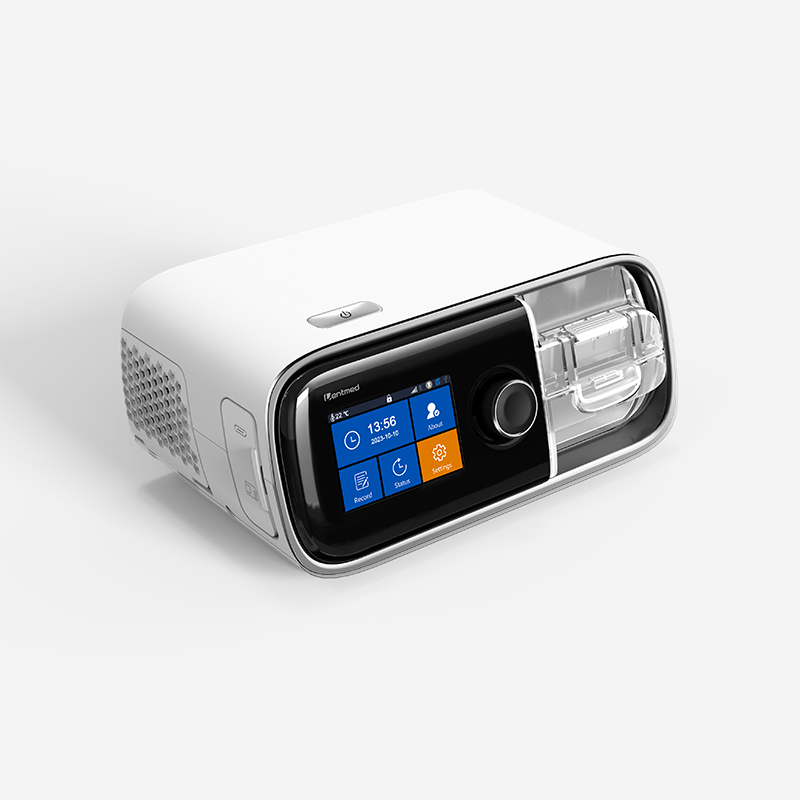

Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
1 / 5
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm
Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm

Respiratory Therapy Device for Homecare Osa Treatment Apap Df-20A-Hm

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
DF-20A-HM
Certification
CE, ISO13485
LCD Display
With LCD Display
Group
Adult
Warranty
1 Years
Mode
CPAP, Auto
Application
Hospital or Home
Power
AC 100-240V~ 2.1A, 50-60Hz
Size
266.8*172.5*118.5mm
Screen
3.5 Inch TFT
Pressure Range
4-20CMH2o, Auto Adjust
Data Storage
TF Card
Respiratory Therapy Device
Product Description

The Respiratory system is an Auto CPAP device designed for the treatment of adult Obstructive Sleep Apnea (OSA)/Hypopnea/Snoring.

🌐

Smarter Technology

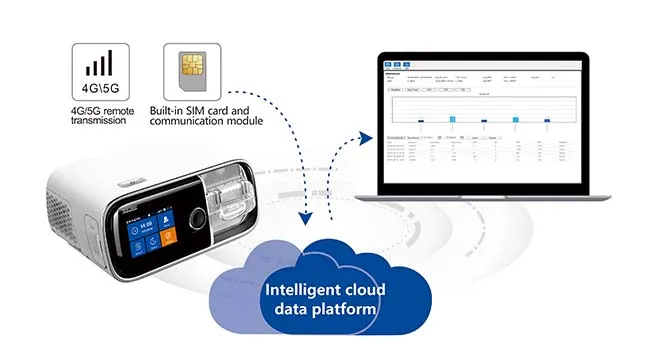

Built-in IOT cards - Upload usage data to the cloud platform in real time. Interpret usage data through the background intelligent AI diagnosis system.

Smarter System

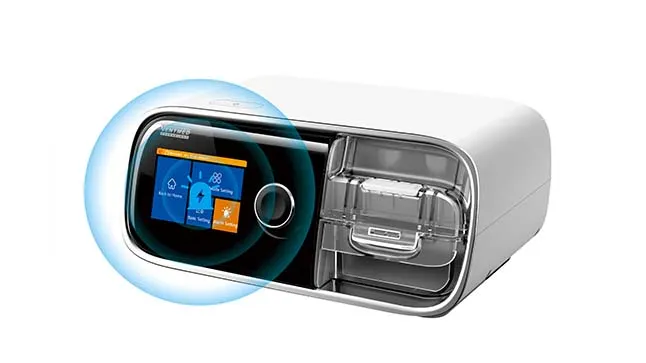

Safety Features
🛡️

Safer Monitoring

Smart alarm safer to use: Mask falling off, apnea, abnormal pressure, and multiple alarms for tubing abnormalities to guarantee treatment effects.

🔥

More Comfortable

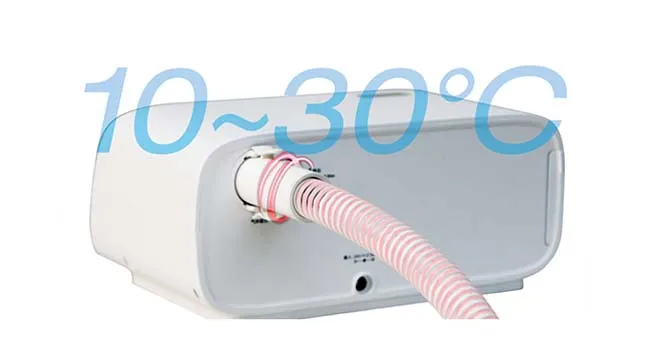

Heated breathing tube for even heating. Built-in temperature sensor enables precise adjustment (10-30°C) of the mask end.

Comfortable Tubing
Bluetooth Capable
📱

More Capable & Convenient

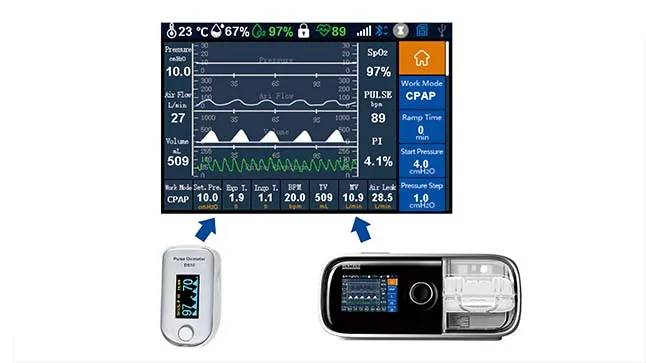

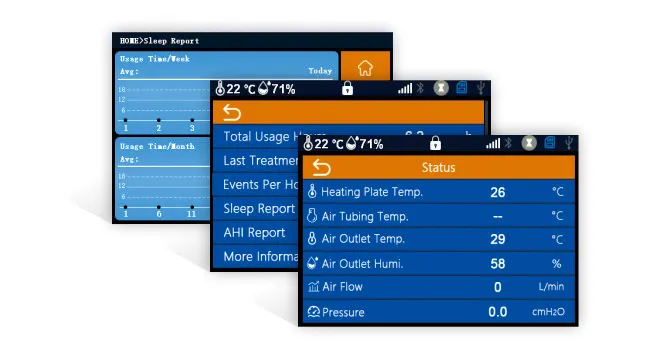

Bluetooth connection to pulse oximeter. Intuitive 3.5" TFT display for viewing sleep records, AHI reports, and respiratory events without a computer.

Data Display
Key Features
  • Save more than 20hr real-time data and 1 year of records.
  • Real-time airflow and pressure wave display.
  • EPR (expiratory pressure relief) for natural breathing.
  • Auto-Leak and Auto-Altitude compensation.
  • Independent airflow channel design.
  • Parameters lock to prevent accidental changes.
Packing List
1. Host Device & Humidifier
2. Mask (Optional)
3. 5pcs Filter Cotton
4. Air Tubing
5. Water Tub
6. TF Card
7. Measuring Cup
8. Power Supply Unit
9. Carry Package
10. User Manual
Technical Specifications
Work ModeCPAP, AUTO
Pressure Range4cmH2O - 20cmH2O
Tubing HeatingYes (10ºC-30ºC adjustable)
Cloud PlatformYes (IOT Support)
Ramp Time0-60 min
Noise Level< 29dB (at 10cmH2O)
HumidifierLevel 1-5 adjustable
Weight1.7 KGS
Power Input100-240V~ 50/60Hz, 1.5A Max
Professional Experience

Specializing in sleep and respiratory health, we focus on high-precision sensor technology and cloud-based monitoring solutions to improve patient comfort and data accuracy.

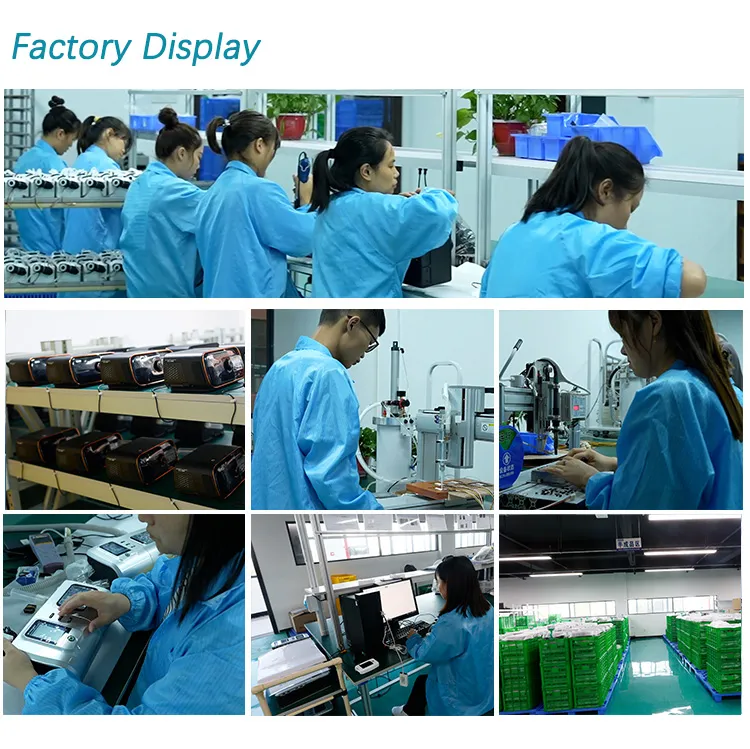

R&D Center
Production Line
Quality Control
Global Exhibition
Frequently Asked Questions
Q1: Can the device adjust pressure automatically? Yes, in Auto CPAP mode, the device adjusts pressure within the range of 4-20cmH2O based on your respiratory events.
Q2: Is the data accessible on a smartphone? The device features built-in IOT cards and Bluetooth connectivity, allowing data upload to cloud platforms for real-time monitoring.
Q3: How quiet is the operation? The noise level is very low, maintaining less than 29dB under a pressure of 10cmH2O, ensuring a quiet sleep environment.
Q4: What is the benefit of the heated tubing? The heated tube prevents condensation and ensures the air remains at a consistent, comfortable temperature between 10-30°C.
Q5: Does it have safety alarms? Yes, it includes multiple alarms for mask leaks, apnea detection, power failure, and abnormal tubing pressure.
Q6: Can it be used during international travel? Yes, it supports a wide power range of 100-240V and includes a flight mode to turn off network signals.
