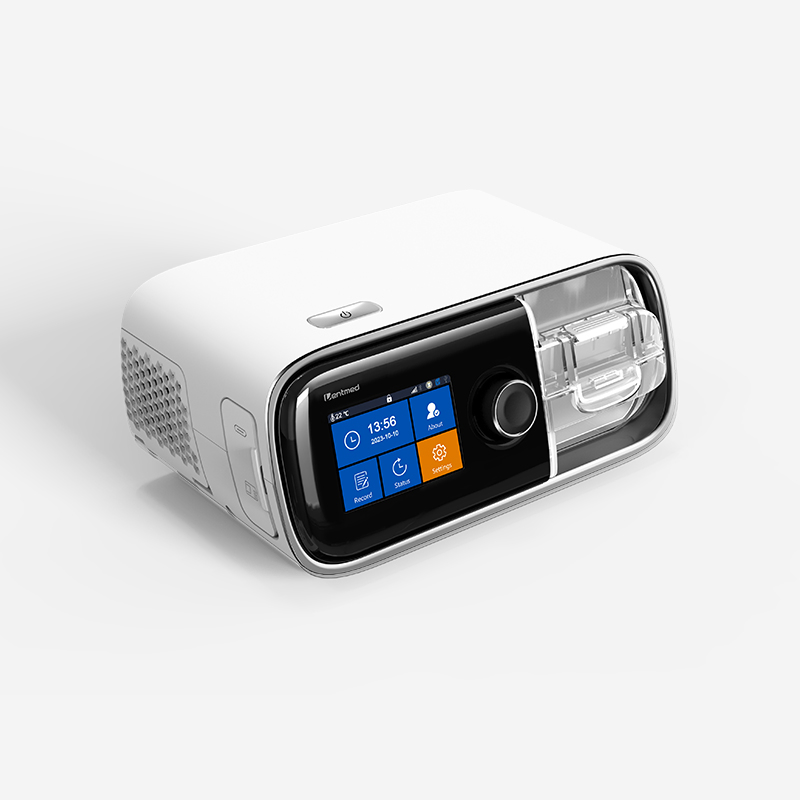

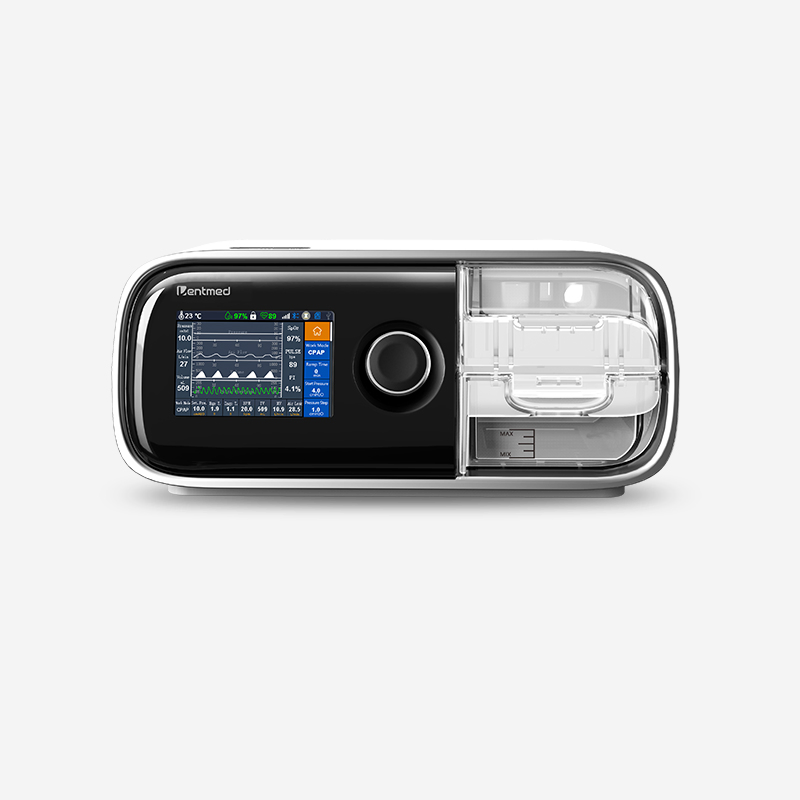

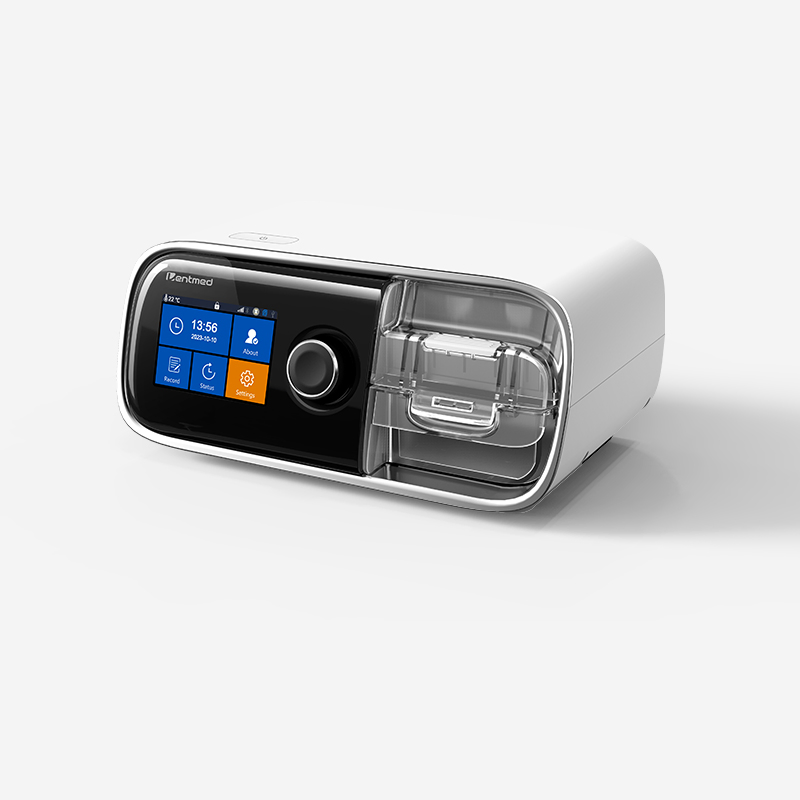

The respiratory system is an advanced Auto CPAP device designed specifically for adult treatment of Obstructive Sleep Apnea (OSA), Hypopnea, and Snoring. It combines intelligent tracking with high comfort levels to ensure effective therapy.

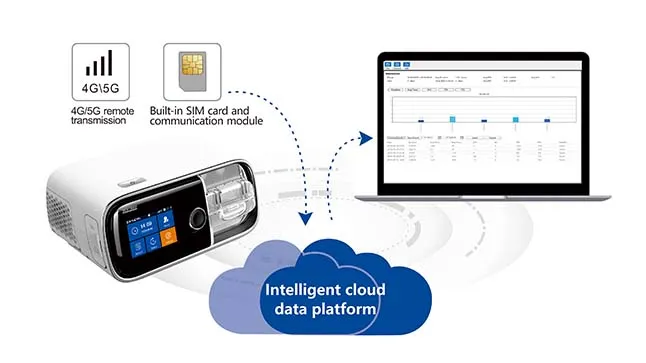

Built-in IOT capability for real-time data synchronization. Features an intelligent AI diagnosis system to interpret usage patterns and treatment efficacy.

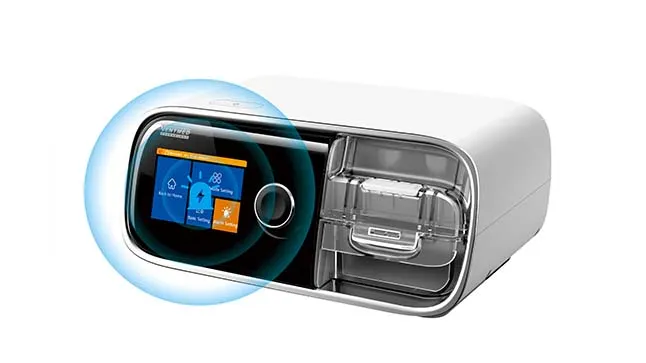

Equipped with smart alarms for mask displacement, apnea events, abnormal pressure, and tubing issues to guarantee consistent patient safety.

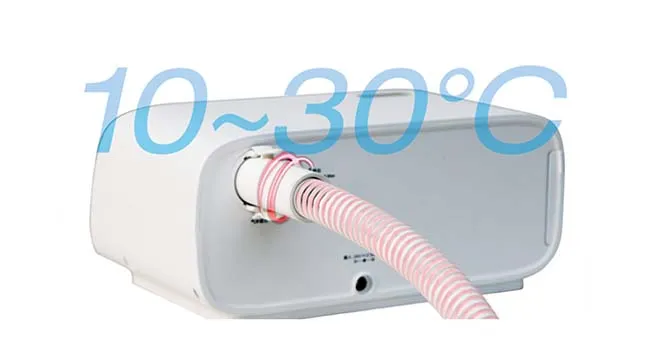

Heated breathing tube with surround heating technology (10-30°C adjustable). Built-in sensors ensure even temperature distribution at the mask end.

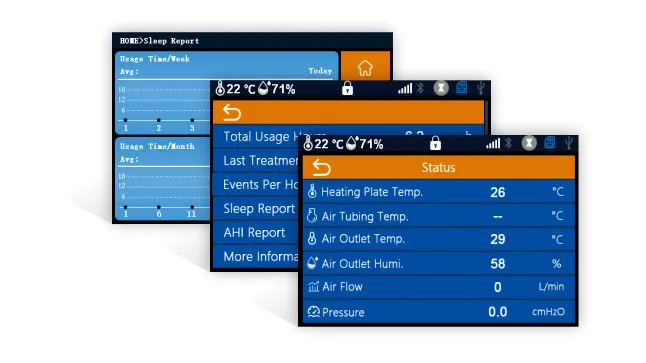

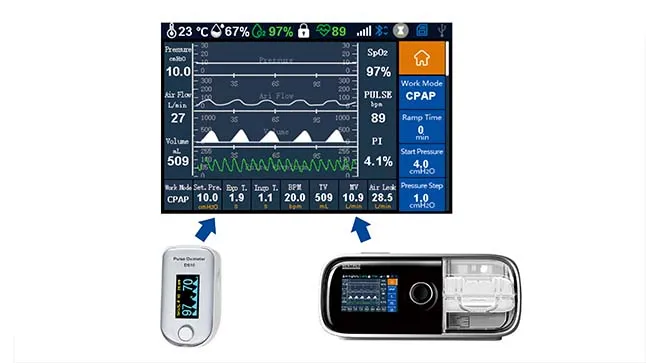

Bluetooth connectivity for pulse oximeters. View AHI reports and sleep records directly on the 3.5" color display without needing a computer.
| Parameter | Detail |
|---|---|
| Pressure Range | 4cmH2O - 20cmH2O |
| Ramp Time | 0 - 60 minutes |
| Noise Level | < 29dB (at 10cmH2O) |

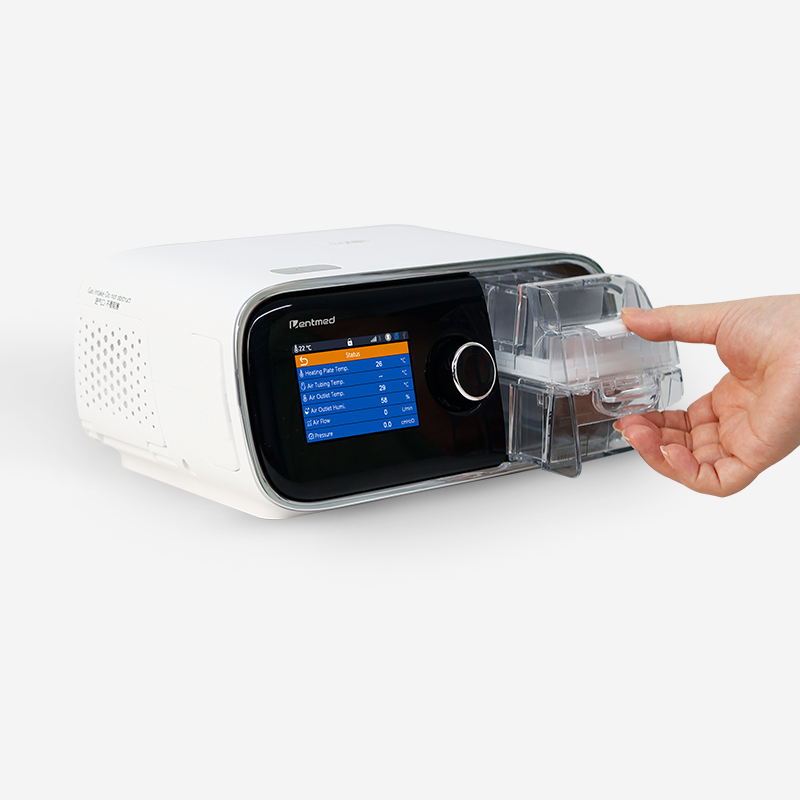

| Humidifier | Level 1-5 adjustable heating |
| Tube Temp | 10ºC - 30ºC adjustable |
| Dimensions | 266.8 * 172.5 * 118.5mm |
| Weight | 1.7 KG |
| Power Source | 100-240V~ 50/60Hz, 1.5A Max |
