Product Description

Basic Specifications

Model NO.: LT2200E
Type: Particle Size Measurement
Accuracy Grade: 1
Load Way: Electronic Load
Display: Digital
Power Source: AC220V
Measuring Time: < 10 Seconds
Measuring Speed: 20,000 Times/Sec
Specification: 77*38*42CM
HS Code: 9024800000

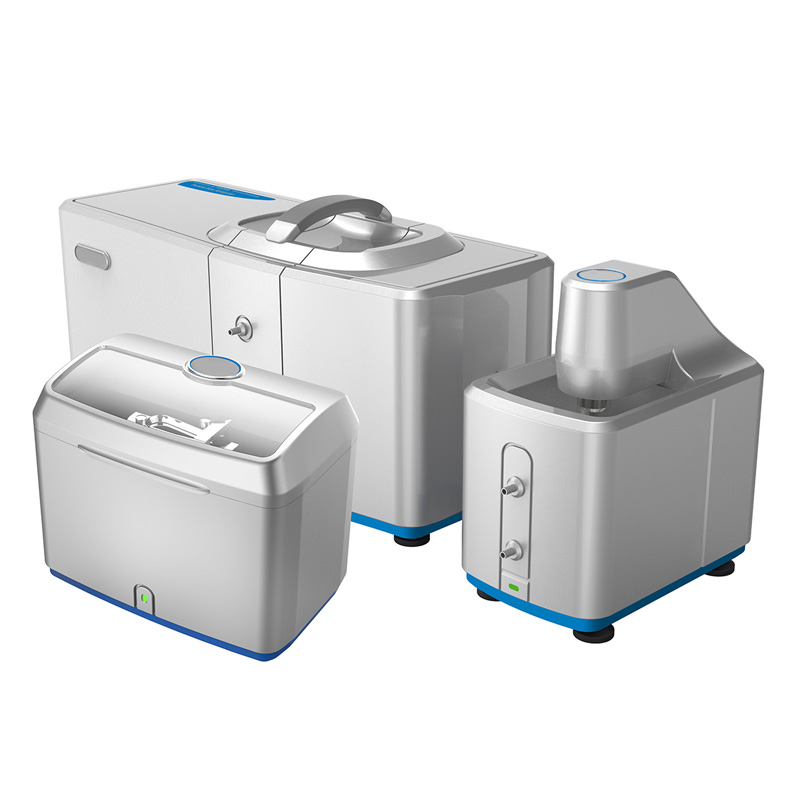

Wet Laser Particle Analysis Device

The LT2200E laser particle size meter is equipped with patented polarization filtering technology, which eliminates the traditional pinhole and mechanical adjustment, realizing highly stable laser polarization setting and spatial filtering. The use of the first diffraction Airy spot anomalous change (ACAD) compensation correction technology allows users to obtain accurate results over the full particle size range.

◈
Benefit Technology:
Polarization filtering technology | ACAD Compensation and correction | Oblique incidence inverse Fourier path | Grille type large Angle detection array | Particle size analysis model optimization | Continuous liquid level sensing | High sensitivity light energy tracking.

Performance Features:

  • Fully in line with ISO13320 diffraction measurement technical standards.
  • No need to replace the lens or use standard sample calibration.
  • Measuring range of 0.1 micron to 1200 micron.
  • Holographic signal synchronous processing technology for real-time measurement.
  • Ultra-stable solid laser light source system with automatic temperature constant technology.

Technical Parameters

Detecting System Grille detector array with large Angle, non-uniform cross area compensation and high sensitivity backscatter detection unit.
Sampling Method ** Wet dispersed: Support SOP one-click operation, 1000ml capacity, 0-2500RPM adjustable.
** Dry dispersed: 0-4.5Bar continuous adjustable (optional).
Light Source 638nm solid-state laser with integrated thermostatic system, up to 20mW.
Measuring Speed Up to 20,000 times per second.
Accuracy Dv50 better than ±0.6% (NIST-Traceable latex standard).
Repeatability Dv50 better than ±0.5% (NIST-Traceable latex standard).
Size/Weight 670mm x 275mm x 320mm / 30KG.

Product Presentation

Wet Laser Particle Analysis Device

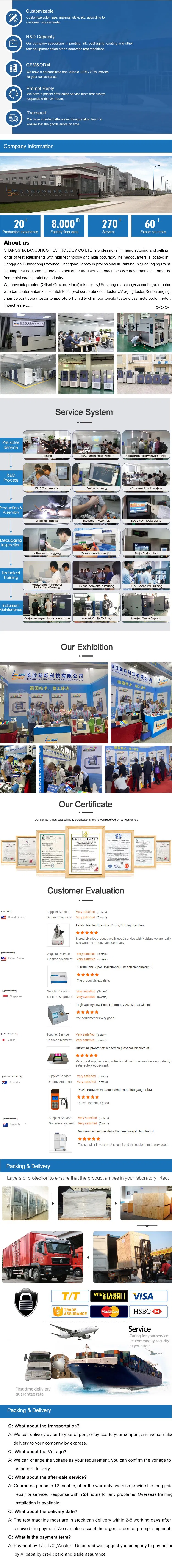

Particle Size Measurement Specs

Frequently Asked Questions

Q1: What is the measurement range of the LT2200E? A: The device covers a wide range from 0.1 microns to 1200 microns without the need to replace lenses.
Q2: Does it comply with international measurement standards? A: Yes, it is fully compliant with the ISO13320 diffraction measurement technical standards.
Q3: How fast can the device perform measurements? A: It features holographic signal synchronous processing with a real-time measurement speed of up to 20,000 times per second.
Q4: What types of dispersion media are supported? A: The wet sampling system is compatible with both organic and aqueous dispersion media, supporting a sample pool capacity of up to 1000 ml.
Q5: Is manual calibration required frequently? A: No, the system uses intelligent fully automatic optical alignment and does not require frequent standard sample calibration.
Q6: What are the software requirements? A: The analysis software runs on Windows 7 or above Professional Edition and uses a USB 2.0 or higher interface.
